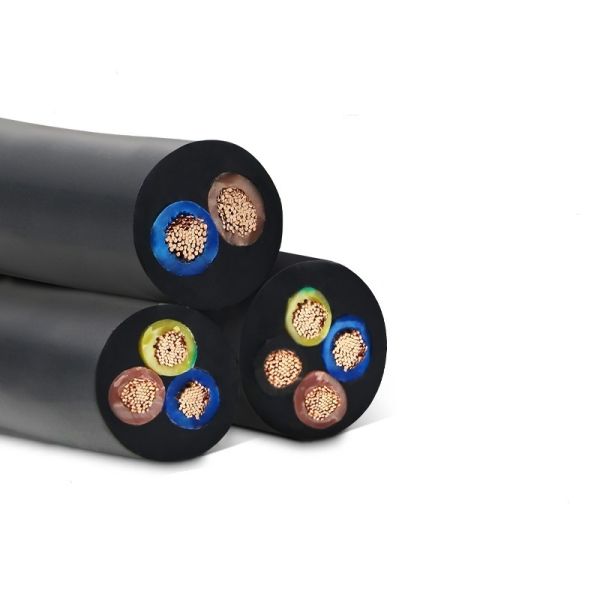

High Quality Industrial Construction JHS Submersible Pump Cable
450V Flexible Rubber Sheathed Copper Core Waterproof Submersible Pump Cable for Deep Wells. This 450/750V heavy-duty, high-performance cable features stranded copper conductor with EPR insulation, designed specifically for submersible water pump applications.
Available in 2, 3, 4, 5, 6 core configurations with cross sections ranging from 0.75mm² to 300mm². JHS submersible cable is a rubber-insulated and sheathed flexible cable specially engineered for power supply to submersible pumps in deep wells, rivers, and industrial water systems.
Product Overview
This waterproof rubber cable is manufactured using special rubber waterproof material and thermoplastic elastomer filling materials, featuring cold resistance, flexibility, and superior waterproof properties. Designed for connecting submersible motors with DC voltage 450/750V and below, with a long-term allowable operating temperature not exceeding 65°C.
Key Features
- Conductor: Stranded multiple thin copper wires for maximum flexibility
- Sheath: High-quality rubber material
- Insulation: EPR (Ethylene Propylene Rubber)
- Voltage Rating: 450/750V
- Filler: TPE (thermoplastic elastomer)
- Wrapping Tape: Non-woven fabrics
- Shape: Round design for optimal performance
- Core Options: Available in Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores, 6 Cores
- Cross Section Range: From 0.75mm to 300mm
Primary Applications
- Water Conservancy: Submersible pumps for farmland irrigation, fish pond oxygenation, urban water supply systems, and sewage treatment
- Construction: Power supply for submersible pumps in sinking well construction and underwater concrete vibrators
- Municipal Engineering: Temporary power supply for sewer cleaning equipment and river dredging machinery
- Underwater Operations: Underwater welding, cleaning, and other submerged applications
- Landscape Lighting: Power transmission for water illumination lamps and water treatment equipment
- Marine Applications: Bilge pumps on ships, deck equipment, and port shore washers
Technical Specifications
| Product Name |
Waterproof Rubber Cable |
| Conductor Material |
Stranded Copper conductor |
| Insulation Material |
EPR |
| Jacket |
Rubber |
| Features |
Flame retardant, waterproof, cold resistant, high temperature resistant, highly flexible |
Quality Assurance
- Every production process undergoes specialized quality testing
- Professional engineers conduct final quality inspections
- All products meet CCC/ISO9001 certifications and comply with IEC standards
About Chongqing Kefei Cable Group Co., Ltd.
With 40 years of experience in R&D and production of rubber cables, our company specializes in manufacturing various electrical cables including mining cables, rubber sheath cable series, shield machine special high voltage cables, and other specialized series. Our flexible cable series benefits from over 20 years of expertise and can be customized to meet specific customer requirements.
Our Advantages
- Advanced production technology
- High-quality design standards
- Comprehensive testing equipment
- Stringent quality control processes
- Mature and optimized production workflows
Production Facilities
Certifications
Packaging & Shipping
We provide professional, environmentally friendly, and efficient packaging services to ensure the complete safety of your goods during transportation.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a production manufacturer committed to delivering the highest quality products.
Can you produce and manufacture products according to customer requirements?
Yes, we offer customized solutions tailored to your specific requirements.
How can we guarantee quality?
We implement pre-production sampling and final inspection protocols before shipment.
How can I place an order?
Please provide detailed requirements for an immediate quote. For complex requests, we recommend direct contact via Skype, email, or phone.
